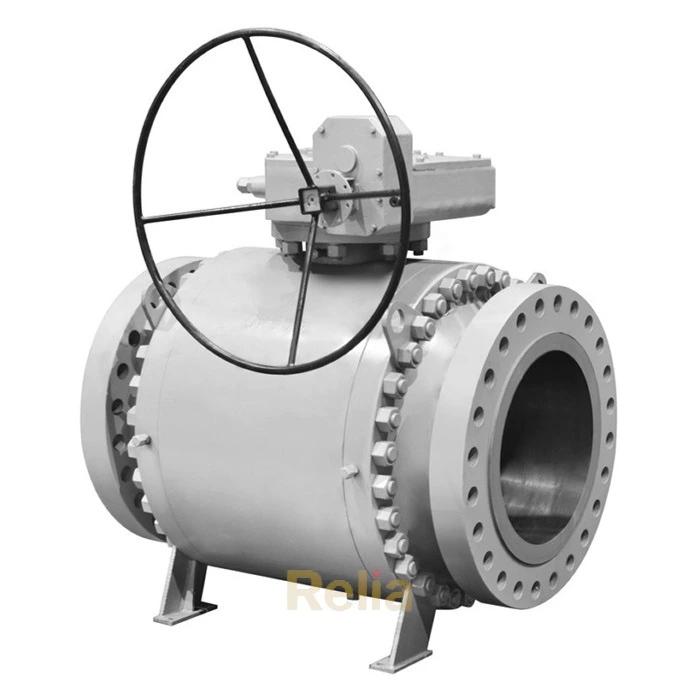

Ball Valve

Metal ball valves are used for oil, natural gas, and petrochemical industries. Relia metal ball valves are mainly made of carbon steel, stainless steel, duplex steel, low-temperature carbon steel, Al bronze, Monel, etc.

Design Standard:

API 6D: Specifications for Valves
API 6D defines the requirements of axial, ball, check, gate, and plug valves for application in the petroleum and natural gas industries.

API 608: Metal Ball Valves—Flanged, Threaded and Welding Ends
API 608 specifies the requirements for metal ball valves suitable for petroleum, petrochemical and industrial applications.

BS 5351: Steel ball valves for the petroleum, petrochemical and allied industries

Basic Features

  • Anti-blowout stem
  • Anti-static device
  • Fire safe design
  • Self-relieving seat


  • A quarter turn through the valve allows for quick opening and closing.
  • It is very easy to use.
  • Application as an isolation valve (on and off)
  • Suitable for emergency shutdown conditions.

Design Types:

  • Floating or Trunnion-mounted
  • Soft-seated and metal-seated
  • Full bore and reduced bore
  • Body types: side entry, top entry, split body, or welded body.
  • Single/double piston effect

Valve Ends:

  1. Flanged ends with raised faces or ring joint faces
  2. Threaded ends
  3. Socket-weld ends
  4. Butt-weld ends

Valve Operator:

Ball valves can be operated by a lever, wrench, hand wheel, or pneumatic, hydraulic, or motor.
A ball valve is rotated in a clockwise direction to close and an anti-clockwise direction to open.
The maximum lever length is 450mm, and the maximum hand wheel diameter is the greater of the valve's face-to-face dimension or 800mm, whichever is less.

A gear operator is required to be provided for valves as per the below criteria:
6" & larger for Class 150 ball valves
4" & larger for Class 300 & Class 600 ball valve
3" & larger for Class 900 ball valve and onwards
