34 Inch Ball Valve
34 inch ball valves, DN850, zero leakage. Anti-Static Device: The ball/spring assembly provided at the stem allows the static charges to be discharged to the piping. In this way, an electrostatic charging of the ball is eliminated. 34 inch ball valve at affordable prices.
- Design Feature
- Anti-static Device
- Size
- 34" (DN850)
- Pressure Rating
- Class 150, 300, 600
- Unit Price
- $14000-$128000
34 Inch Ball Valve Dimensions

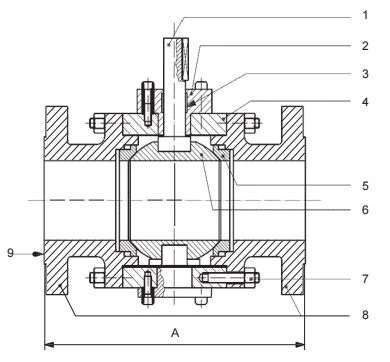

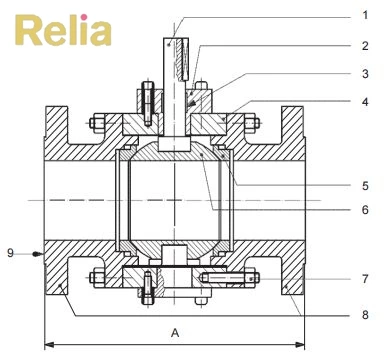

34 inch ball valve face to face dimensions (flanged RF)

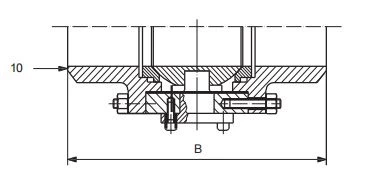

34 inch ball valve end to end dimensions (welded ends)

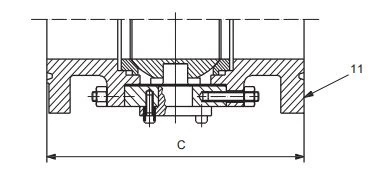

34 inch ball valve face to face dimensions (flanged RTJ)
| inch | mm | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimum a Bore Diameter inch (mm) |
||
| Raised Face (A) | Weld End (B) | Ring Joint (C) | Full Bore Ball Valve | |||
| 34" | DN850 | Class 150 | 58.00 (1473) | 64.00 (1626) | — | 32.68 (830.0) |
| 34" | DN850 | Class 300 | 64.00 (1626) | 64.00 (1626) | 65.13 (1654) | 32.68 (830.0) |
| 34" | DN850 | Class 600 | 76.00 (1930) | 76.00 (1930) | 76.00 (1930) | 32.68 (830.0) |
| 34" | DN850 | Class 900 | — | — | — | 31.81 (808.0) |
| 34" | DN850 | Class 1500 | — | — | — | 30.50 (775.0) |
a There is no upper size limit for a valve bore
34 Inch Ball Valve Weight, in Kgs
| inch | DN | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
| Cast Steel | Forged Steel | |||
| 34" | DN850 | Class 150 | ... | 6704 |
| 34" | DN850 | Class 300 | ... | 7370 |
| 34" | DN850 | Class 600 | ... | 8460 |
| 34" | DN850 | Class 900 | ... | 17462 |
