3 Inch Ball Valve
3 inch ball valves, high pressure up to ANSI Classs 2500; flanged or welded ends. The price is $60 for Class 150, 3" ball valve with carbon steel body.
API 6D certificated, fire safe design to API 607/API 6FA, flanged connection acc. to ASME B16.5.
- Size
- 3" (DN80)
- Pressure Rating
- Class 150-2500 (PN20-420)
- End Connections
- Flanged, Welded etc.
- Unit Price
- $60-$2800
3 Inch Ball Valve Dimensions

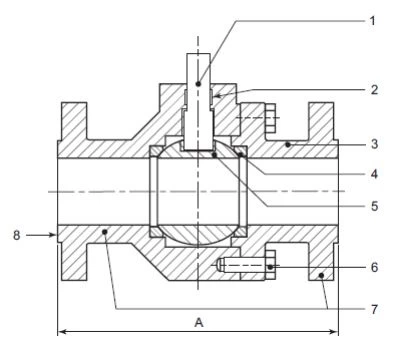

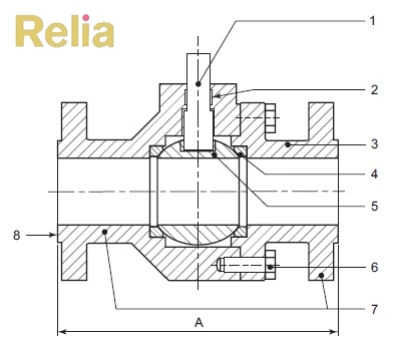

3 inch ball valve face to face dimensions (flanged RF)

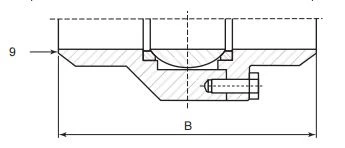

3 inch ball valve end to end dimensions (welded end)
3 inch ball valve face to face dimensions ( flanged RTJ)
| Size | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimuma Bore Diameter inch (mm) |
||
| Raised Face(A) | Weld End(B) | Ring Joint(C) | Full Bore Ball Valve | ||
| 3" | Class 150 | 8.00 (203) | 11.13 (283) | 8.50 (216) | 2.91(74.0) |
| 3" | Class 300 | 11.13 (283) | 11.13 (283) | 11.75 (298) | 2.91 (74.0) |
| 3" | Class 600 | 14.00 (356) | 14.00 (356) | 14.00 (356) | 2.91 (74.0) |
| 3" | Class 900 | 15.00 (381) | 15.00 (381) | 15.13 (384) | 2.91 (74.0) |
| 3" | Class 1500 | 18.50 (470) | 18.50 (470) | 18.63 (473) | 2.91 (74.0) |
| 3" | Class 2500 | 22.75 (578) | 22.75 (578) | 23.00 (584) | 2.44 (62.0) |
3 Inch Ball Valve Weight, in Kgs
| NPS | DN | Pressure Rating | Floating Ball Valve | Trunnion Mounted Ball Valve | ||
| Cast Steel | Forged Steel | Cast Steel | Forged Steel | |||
| 3" | 80 | Class 150 | 19 | 23 | 33 | 60 |
| 3" | 80 | Class 300 | 27 | 39 | 40 | 69 |
| 3" | 80 | Class 600 | ... | 48 | 50 | 80 |
| 3" | 80 | Class 900 | ... | 55 | ... | 87 |
| 3" | 80 | Class 1500 | ... | 65 | ... | 115 |
| 3" | 80 | Class 2500 | ... | ... | ... | 200 |
Note: All weights are for full-bore ball valves.
