36 Inch Ball Valve
36 inch ball valves, double block and bleed. Fire safe construction: primary soft seat with secondary metal to metal seat. 36 inch ball valve at affordable prices.
- Design Feature
- Double Block and Bleed
- Size
- 36 inch (DN900)
- Pressure Rating
- Class 150-900 (PN20-160)
- Unit Price
- $18500-$165000
36 Inch Ball Valve Dimensions

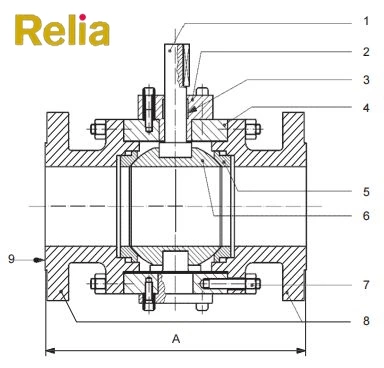

36 inch ball valve face to face dimensions (flanged RF)
36 inch ball valve end to end dimensions (welded ends)
36 inch ball valve face to face dimensions (flanged RTJ)
| Size | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimuma Bore Diameter inch (mm) |
||
| RaisedFace(A) | WeldEnd(B) | Ring Joint(C) | Full Bore Ball Valve | ||
| 36" | Class150 | 60.00(1524) | 68.00(1727) | — | 34.41 (874.0) |
| 36" | Class300 | 68.00(1727) | 68.00(1727) | 69.13(1756) | 34.41 (874.0) |
| 36" | Class600 | 82.00 (2083) | 82.00 (2083) | 82.00 (2083) | 34.41 (874.0) |
| 36" | Class900 | 90.00(2286) | — | 91.13(2315) | 33.66 (855.0) |
| 36" | Class1500 | — | — | — | 32.24 (819.0) |
a There is no upper size limit for a valve bore
36 Inch Ball Valve Weight, in Kgs
| NPS | DN | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
| Cast Steel | Forged Steel | |||
| 36" | 900 | Class 150 | 2760 | 7615 |
| 36" | 900 | Class 300 | ... | 8435 |
| 36" | 900 | Class 600 | ... | 10650 |
| 36" | 900 | Class 900 | ... | 20154 |
| 36" | 900 | Class 1500 | ... | ... |
| 36" | 900 | Class 2500 | ... | ... |
