20 Inch Ball Valve
20 inch ball valve (20"), DN500, Class 150-2500, API 6D approved, fire safe design, gear operated. Low operating torque permitting lower cost actuation. Ball valve 20 inch is available at afordable price.
- Size
- 20" (DN500)
- Pressure Rating
- Class 150, 300, 600, 900, 1500
- Body Material
- A216 WCB, A105, LCB, LF2, F304, F51 etc.
- Unit Price
- $8800-$43000
20 Inch Ball Valve Dimensions
(Class 150, 300, 600, 900, 1500)
![20 inch ball valve face to face dimensions (flanged RF)](https://c5.hongcdn.com/uploads/2304/20-inch-ball-valve-face-to-face-dimensions-flanged-rf-!j.webp)
![20 inch ball valve end to end dimensions (welded ends)](https://c5.hongcdn.com/uploads/2304/20-inch-ball-valve-end-to-end-dimensions-welded-ends-!j.webp)
![20 inch ball valve face to face dimensions (flanged RTJ)](https://c5.hongcdn.com/uploads/2304/20-inch-ball-valve-face-to-face-dimensions-flanged-rtj-!j.webp)

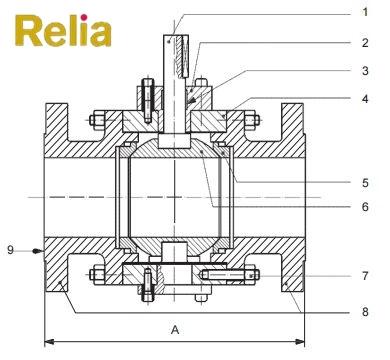

20 inch ball valve face to face dimensions (flanged RF)
20 inch ball valve end to end dimensions (welded ends)
20 inch ball valve face to face dimensions (flanged RTJ)
inch | mm | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimum a Bore Diameter inch (mm) |
||
Raised Face (A) | Weld End (B) | Ring Joint (C) | Full Bore Ball Valve | |||
20" | DN500 | Class 150 | 36 (914) | 39 (991) | 36.5 (927) | 19.17 (487.0) |
20" | DN500 | Class 300 | 39.00 (991) | 39.00 (991) | 39.75 (1010) | 19.17 (487.0) |
20" | DN500 | Class 600 | 47.00 (1194) | 47.00 (1194) | 47.00 (1194) | 19.17 (487.0) |
20" | DN500 | Class 900 | 52.00 (1321) | 52.00 (1321) | 52.50 (1334) | 18.54 (471.0) |
20" | DN500 | Class 1500 | 65.50 (1664) | — | 66.38 (1686) | 17.87 (454.0) |
20" | DN500 | Class 2500 | — | — | — | 16.50 (419.0) |
a There is no upper size limit for a valve bore
20 Inch Ball Valve Weight, in Kgs
(Class 150, 300, 600, 900, 1500)
inch | mm | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
Cast Steel | Forged Steel | |||
20" | DN500 | Class 150 | 1190 | 1918 |
20" | DN500 | Class 300 | 1320 | 2090 |
20" | DN500 | Class 600 | 2800 | 2640 |
20" | DN500 | Class 900 | 2928 | 3460 |
20" | DN500 | Class 1500 | 4860 | 4497 |
