14 Inch Ball Valve
14 inch ball valve (14"), DN350, trunnion mounted, flanged ends, gear operated, fire safe. Ball valve 14 inch is tested zero leakage before shipment. Unit price: $1615-$32000
- Ball Type
- Trunnion Mounted Ball Valve
- Size
- 14" (DN350)
- Pressure Rating
- Class 150, 300, 600, 900, 1500
- Unit Price
- $1615-$32000
14 Inch Ball Valve Dimensions
(Class 150, 300, 600, 900, 1500)
![14 inch ball valve face to face dimensions (flanged RF)](https://c5.hongcdn.com/uploads/2304/14-inch-ball-valve-face-to-face-dimensions-flanged-rf-!j.webp)
![14 inch ball valve end to end dimensions (welded ends)](https://c5.hongcdn.com/uploads/2304/14-inch-ball-valve-end-to-end-dimensions-welded-ends-!j.webp)
![14 inch ball valve face to face dimensions (flanged RTJ)](https://c5.hongcdn.com/uploads/2304/14-inch-ball-valve-face-to-face-dimensions-flanged-rtj-!j.webp)

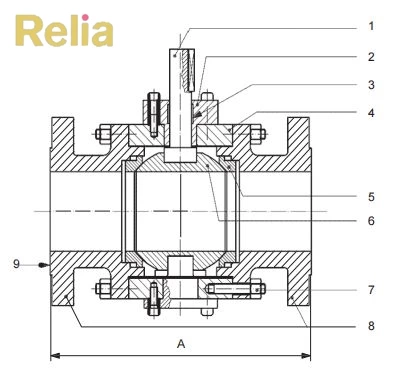

14 inch ball valve face to face dimensions (flanged RF)
14 inch ball valve end to end dimensions (welded ends)
14 inch ball valve face to face dimensions (flanged RTJ)
inch | mm | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimum a Bore Diameter inch (mm) |
||
Raised Face (A) | Weld End (B) | Ring Joint (C) | Full Bore Ball Valve | |||
14" | DN350 | Class 150 | 27.00 (686) | 30.00 (762) | 27.50 (699) | 13.15 (334.0) |
14" | DN350 | Class 300 | 350 | 30.00 (762) | 30.00 (762) | 13.15 (334.0) |
14" | DN350 | Class 600 | 35.00 (889) | 35.00 (889) | 35.00 (889) | 13.15 (334.0) |
14" | DN350 | Class 900 | 40.50 (1029) | 40.50 (1029) | 40.88 (1038) | 12.67 (322.0) |
14" | DN350 | Class 1500 | 49.50 (1257) | 49.50 (1257) | 50.25 (1276) | 12.40 (315.0) |
14" | DN350 | Class 2500 | — | — | — | 11.50 (292.0) |
a There is no upper size limit for a valve bore
14 Inch Ball Valve Weight, in Kgs
(Class 150, 300, 600, 900, 1500)
inch | mm | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
Cast Steel | Forged Steel | |||
14" | DN350 | Class 150 | 570 | 859 |
14" | DN350 | Class 300 | 602 | 900 |
14" | DN350 | Class 600 | 1130 | 12220 |
14" | DN350 | Class 900 | 1398 | 1610 |
14" | DN350 | Class 1500 | 1748 | 2250 |
