10 Inch Ball Valve
10 inch ball valves, trunnion ball valves with flanged or welded ends, fire safe design to API 607/API 6FA, zero leakage. All 10 inch ball valves are hydraulic tested as API 6D/API 598.
- Size
- 10 inch (DN250)
- Pressure Rating
- Class 150-2500 (PN20-420)
- Body Material
- Carbon steel, stainless steel, duplex steel etc.
- Unit Price
- $850-$17900
10 Inch Ball Valve Dimensions

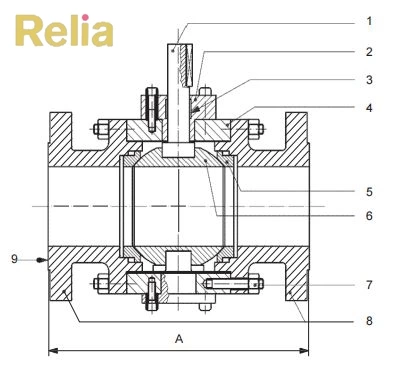

10 inch ball valve face to face dimensions (flanged RF)
10 inch ball valve end to end dimensions (welded ends)
10 inch ball valve face to face dimensions (flanged RTJ)
| Size | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimuma Bore Diameter inch (mm) |
||
| Raised Face(A) | Weld End(B) | Ring Joint(C) | Full Bore Ball Valve | ||
| 10" | Class 150 | 21.00 (533) | 22.00 (559) | 21.50 (546) | 9.92 (252.0) |
| 10" | Class 300 | 22.38 (568) | 22.00 (559) | 23.00 (584) | 9.92 (252.0) |
| 10" | Class600 | 31.00 (787) | 31.00 (787) | 31.00 (787) | 9.92 (252.0) |
| 10" | Class900 | 33.00 (838) | 33.00 (838) | 33.13 (841) | 9.92 (252.0) |
| 10" | Class1500 | 39.00 (991) | 39.00 (991) | 39.38 (1000) | 9.41 (239.0) |
| 10" | Class 2500 | 50.00(1270) | 50.00(1270) | 50.88 (1292) | 8.78 (223.0) |
a There is no upper size limit for a valve bore
10 Inch Ball Valve Weight, in Kgs
| NPS | DN | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
| Cast Steel | Forged Steel | |||
| 10" | 250 | Class 150 | 273 | 495 |
| 10" | 250 | Class 300 | 305 | 540 |
| 10" | 250 | Class 600 | 600 | 701 |
| 10" | 250 | Class 900 | 748 | 820 |
| 10" | 250 | Class 1500 | ... | 1195 |
| 10" | 250 | Class 2500 | ... | 2137 |
Note: All weights are for full-bore ball valves.
