Class 600 Globe Valve

Class 600 Globe Valve with its the seat faces on the discs are the spherical type. This type effects a tight seal with a minimum amount of pressure upon the disc.

Valve Type
Globe Valve
Size
1/2"-16"
Pressure Rating
ASME/ANSI Class 600 (PN100)
Unit Price
$30-8800
Origin
China
class 600 globe valve

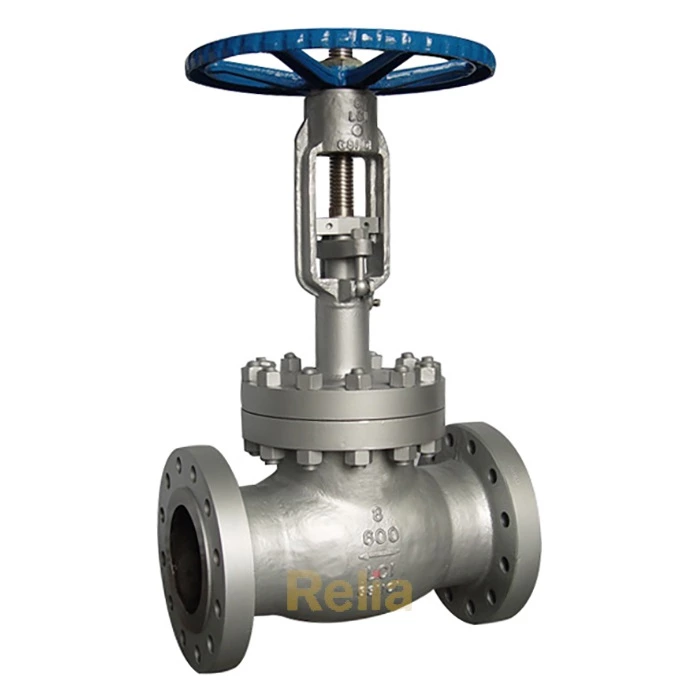

8 inch class 600 globe valve
class 600 globe valve
8 inch class 600 globe valve

 Class 600 Globe Valve Drawing

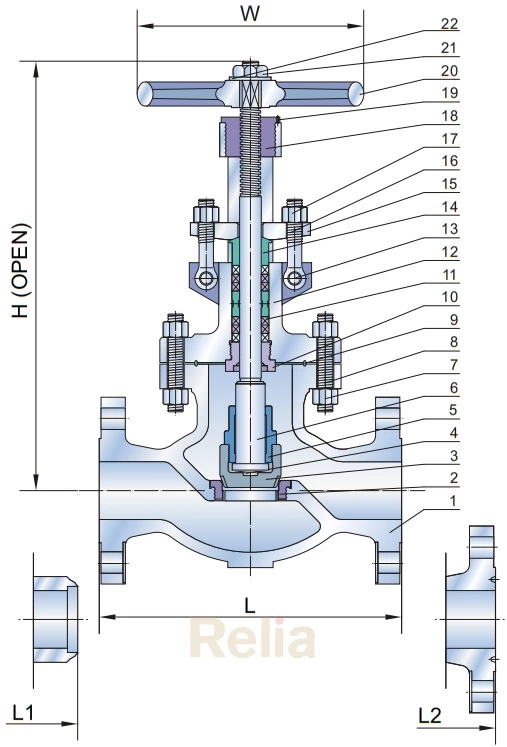

class 600 cast steel globe valve drawing

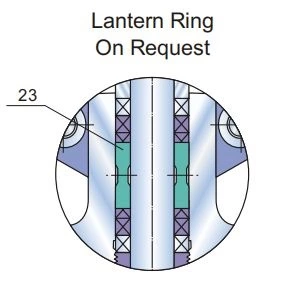

class 600 globe valve lantern ring

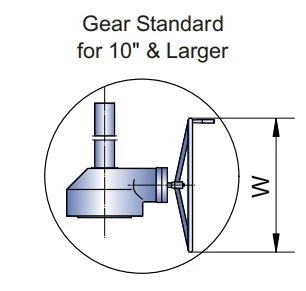

Class 600 globe valve gear drawing

 Typical Material

Item Part Name Material
1 Body A216 WCB A352 LCB A217 WC6 A351 CF3
2 Seat Ring A105 A350 LF2 A182 F11 A182 F304L
3 Disc A105 A350 LF2 A182 F11 A182 F304L
4 Disc Thrust PIate A276 420 A276 304 A276 420 A276 304L
5 Disc Nut A276 410 A276 304 A276 410 A276 304L
6 Stem A182 F6a A182 F304 A182 F6a A182 F304L
7 Bonnet BoIt Nuts A194 2H A194 4 A194 4 A194 8
8 Bonnet BoIts A193 B7 A320 L7 A193 B16 A193 B8
9 Gasket Soft Iron +Graphite 304+Graphite 304+Graphite 316+Graphite
10 Backseat Bushing A276 410 A276 304 A276 410 A276 304L
11 Stem Packing Braided Graphite & Die formed Graphite Ring
12 Bonnet A216 WCB A352 LCB A217 WC6 A351 CF3
13 Eye Bolt Pins Carbon Steel Carbon Steel A276 410 Stainless Steel
14 Gland A276 410 A276 304 A276 410 A276 304L
15 Gland Flange A216 WCB A352 LCB A217 WC6 A351 CF3
16 Gland Eye Bolts A307 B A320 L7 A193 B16 A193 B8
17 Eye Bolt Nuts A194 2H A194 4 A194 4 A194 8
18 Yoke Bush A439 D-2 A439 D-2 A439 D-2 A439 D-2
19 Screw Carbon Steel Carbon Steel Carbon Steel Stainless Steel
20 Handwheel Ductile Iron Ductile Iron Ductile Iron Ductile Iron
21 Handwheel Nut A194 2H A194 2H A194 2H Stainless Steel
22 Washer Carbon Steel Carbon Steel Carbon Steel Stainless Steel
23 Lantern Ring On Request A276 410 A276 304 A276 410 A276 304L

Dimension & Weight

Size Dimensions (mm) Weight
Face to Face (End to End) Hight Gear Kg
L (RF) L1 (BW) L2 (RTJ) H W
2" DN50 292 292 295 462 250 36
3" DN80 365 365 359 585 350 85
4" DN100 432 432 435 670 450 123
6" DN150 559 559 562 886 500 404
8" DN200 660 660 663 932 640 450
10" DN250 787 787 790 1040 610 700
12" DN300 838 838 841 1280 810 900

Note:
* mean bevel gear operated globe valves.
