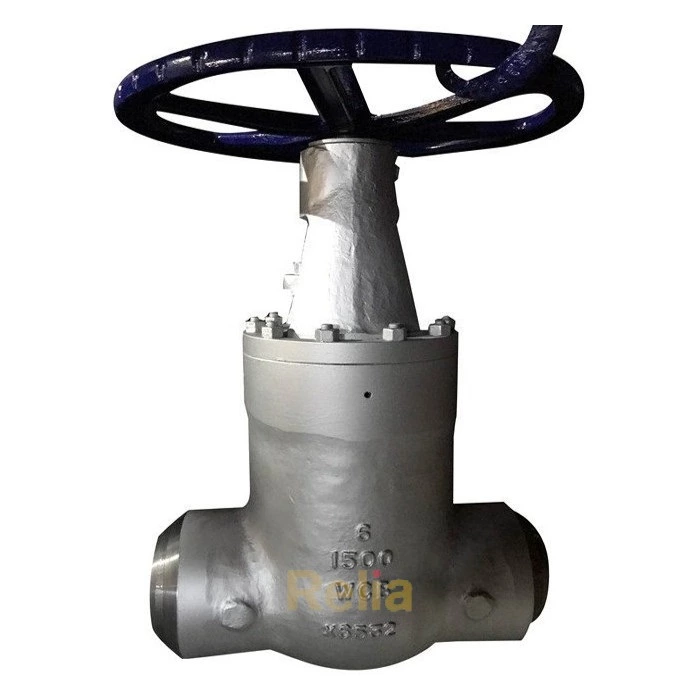

Class 1500 Gate Valve
Class 1500 cast steel gate valves are available in flanged end and butt weld ends. View drawing, dimensions and weight online.
- Valve Type
- Wedge gate valve
- Pressure Rating
- ASME/ANSI Class 1500 (PN250/PN260)
- Body Material
- Cast Steel
- Unit Price
- $60-7500
- Certificate
- API 600
- Origin
- China Valve Manufacturer

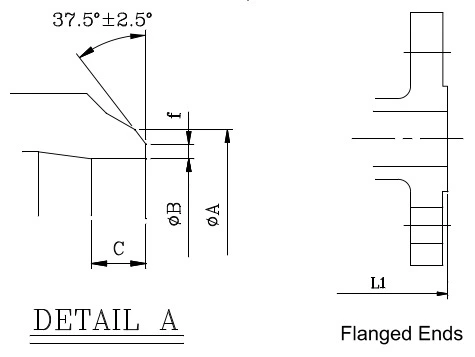

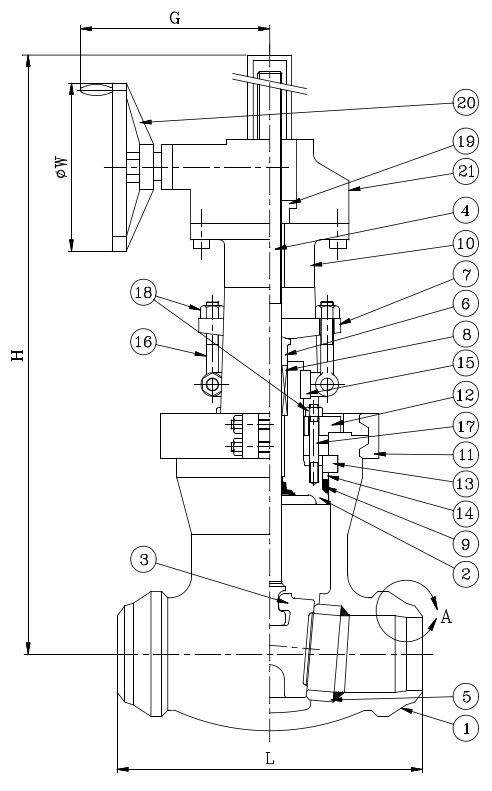

Class 1500 Gate Valve Drawing
Typical Material
| NO. | PARTS NAME | MATERIALS | ||
| WCB | WC6 | LCB | ||
| 1 | Body | A216-WCB | A217-WC6 | A352-LCB |
| 2 | Bonnet | A216-WCB | A217-WC6 | A352-LCB |
| 3 | Disc | A216-WCB+H/F STL#6 | A217-WC6+H/F STL#6 | A352-LCB+H/F STL#6 |
| 4 | Stem | A182-F6a | ||
| 5 | Seat | A105+H/F STL#6 | A182-F6a+H/F STL#6 | A352-LF2+H/F STL#6 |
| 6 | Gland | A276-410 | ||
| 7 | Gland Flange | A216-WCB | ||
| 8 | Gland Packing | Grafoil | ||
| 9 | Gasket (P.S.) | Soft Iron +Silver Plated | ||
| 10 | Yoke | A216-WCB | ||
| 11 | Yoke Clamp | A216-WCB | A217-WC6 | A352-LCB |
| 12 | Bonnet Retainer | A216-WCB | ||
| 13 | Retainer Ring | A182-F6 | ||
| 14 | Spacer Ring | A182-F6 | ||
| 15 | Eye Bolt Clamp | A216-WCB | ||
| 16 | Eye Bolt | A193-B7 | ||
| 17 | Bolts | A193-B7 | A193-B7 | A193-B7M |
| 18 | Nuts | A194-2H | A194-2H | A194-2HM |
| 19 | Stem Nut | A439-D2 | ||
| 20 | Hand Wheel | A536 | ||
| 21 | Bevel Gear | Commercial | ||
Dimensions & Weight
| DN | NPS | L&L1 | H | ФW | G | A | ФB | C | f | WT.(Kg) |
| 150 | 6 | 559 | 1043 | 610 | 337 | 172 | 132 | 20 | 1.6 | 390 |
| 200 | 8 | 711 | 1285 | 610 | 337 | 223 | 173 | 20 | 1.6 | 640 |
| 250 | 10 | 864 | 1580 | 610 | 512 | 278 | 216 | 20 | 1.6 | 980 |
| 300 | 12 | 991 | 1880 | 750 | 512 | 329 | 257 | 20 | 1.6 | 1280 |
Note: Dimensions are in mm.
